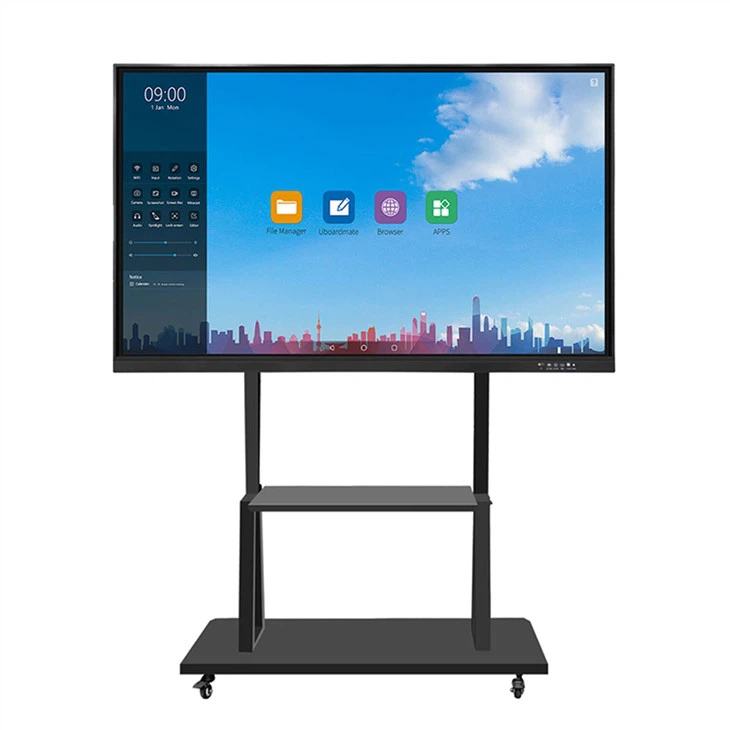

Interactive Touch-screen Smart Board
- Dual OS,support Android and X86 ops
- Infrared or capacitive touch is available, support multi-touch, up to 20 points
- Default installation way is wall mount type, floor stand is optional.
- Real-time annotation,wireless projection, multi screen interaction
Send Inquiry
Product Details ofInteractive Touch-screen Smart Board
Dimension of Interactive Smart Board 55" :
| Product name | Interactive touch-screen smart board |
Aspect ratio | 16:9 |
| Effective display area | 1208.6*679.9mm |
| Resolution | Ultra HD 3840x 2160(4k) |
| Touch type | 20 points Infrared or capacitive touch |
| Glass type | 3mm tempered glass |
| Touch ways | Pen or finger touch |
| Brightness | 350-400nits |
| Refresh rate | 60Hz |
| Voltage | 110~240V/50~60Hz |
| OS | XP/Win7/ Win10/ LINUX/ Android |
| Viewing angle | 178°,178° |
Power consumption | 120W |
| Stand-by power consumption | 0.5W |
| Speaker | 8Ω 10W x 2 |
| Product size | 1257.1*729*82.3mm |
| Packaging size | 1366.6*185*891.5mm |
The panel size of interactive touch-screen smart board is 55 inches with anti-glare and impact-resistant 3mm tempered glass LCD screen, the display ratio is 16:9, and the resolution is 3840*2160 (4k).
Interactive panel adopts all-in-one design, one key can start/stop Windows, Android and TV systems at the same time. Dual-system wireless network function integration, access to the wireless network under Android system, and switch to Windows system to realize the wireless Internet access function at the same time, no need to manually repeat the design. Smart board support wireless screen projection, mobile phone, tablet, computer can easily achieve screen projection to the device.
Aluminum alloy body design, good heat dissipation. At the same time, the front frame of the device adopts a safety design without acute angles. Interactive touch screen board comes with an embedded operating system, which can realize whiteboard writing, PPT courseware playback, multimedia playback, web browsing, and dual-system redundant backup with built-in/external computers.
