Touch Panel Pc Linux

Touch Panel Pc Linux

Designed for industrial purposes (production of goods and services),ip65 industrial touch panel pc is a computer with ip65 waterproof and dustproof, 10-points multi touch.
Send Inquiry
Product Details ofTouch Panel Pc Linux

Product Introduction



Intuitive Interface: With a touch panel PC Linux, users can interact with the device using their fingers or a stylus, making it a more intuitive and natural interface. This can help to reduce the learning curve for users and increase productivity.

Space-saving: Touch panel PCs Linux are designed to be compact and slim, which can help save space on a desktop or work area. This is especially useful in environments where space is at a premium.

Durability: Many touch panel PCs  Linux are built with rugged materials that are resistant to scratches, dust, and water. This makes them ideal for use in industrial or outdoor environments where the device may be exposed to harsh conditions.

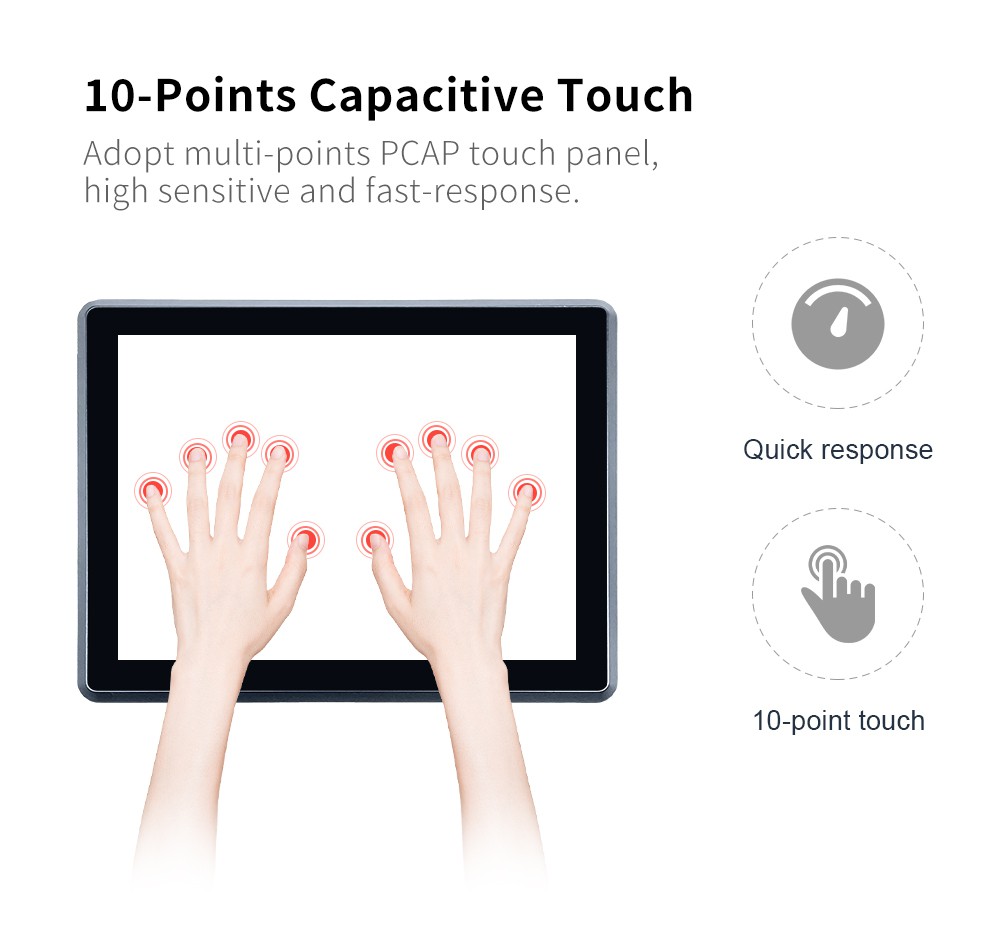

Multi-touch functionality: Touch panel PCs Linux  typically support multi-touch functionality, which means that users can use multiple fingers to interact with the device simultaneously. This can increase the speed and efficiency of certain tasks, such as zooming in and out on images or manipulating objects on the screen.

Versatility: Touch panel PCs  Linux can be used in a variety of applications, including point-of-sale systems, kiosks, industrial automation, and more. They are also compatible with a wide range of software, making them a versatile choice for many different industries and use cases.



01



Product Specification

Touch Panel Pc Linux SK-IPCXJ150A SK-IPCXJ156A SK-IPCXJ170A SK-IPCXJ190A SK-IPCXJ21.5A
Windows
Motherboard
CPU Intel® Celeron®
N5095/N5105

Intel® Core™ 6th Generation/7th Generation
i3/i5/i7 processors

Intel® Core™ 11代
i3-1115G4/i5-1135G7
Graphics card Intel® Ultra Core Graphics
Intel® Core Graphics 620
Memory SSD/Standard 64G/Max512G
RAM DDR4/Standard 8G/16GB/32GB
OS Windows7/10/11/Linux
Interface Audio Port*1
Gigabit LAN port*2
USB3.0 port*2
USB2.0 port*2
HDMI port *1
COM port *2
DC port*1 (55*2.5)
DC Phoenix terminal*1 (reserved)
Power switch*1 (with LED light)
Ground screw*1
Antenna*2
Expandable
I/O Interface
COM*2
VGA*1
USB2.0*4
GPIO*1(10PIN)
power supply DC-12V/5A (standard)
Can be added to 9~36V wide voltage (optional)
Display parameters Size 15 inch 15.6 inch 17 inch 19 inch 21.5 inch
Resolution 1024*768 1920*1080 1280*1024 1280*1024 1920*1080
Screen ratio 4:3 positive screen 16:9 wide screen 4:3 positive screen 4:3 positive screen 16:9 wide screen
Brightness 350cd/m² 300cd/m² 300cd/m² 300cd/m² 300cd/m²
Contrast ratio 1000:1 800:1 1000:1 1000:1 800:1
Dimensions 363.3*287.3*75mm 363.3*287.3*75mm 398.3*330.3*75.9mm 403.3*334.3*75.9mm 440*350*75.9mm
Weight ≤6KG ≤6KG ≤6.5KG ≤6.8KG ≤7KG
Touch type Capacitive touch
Color Star Gray / Classic Black
Installation embeded/wall mounting/desktop
Chassis Material Aluminum
Certifications CCC,CE,RoHs
Temperature and humidity Temperature: -10°C~60°C; Humidity: 95% non-condensing
