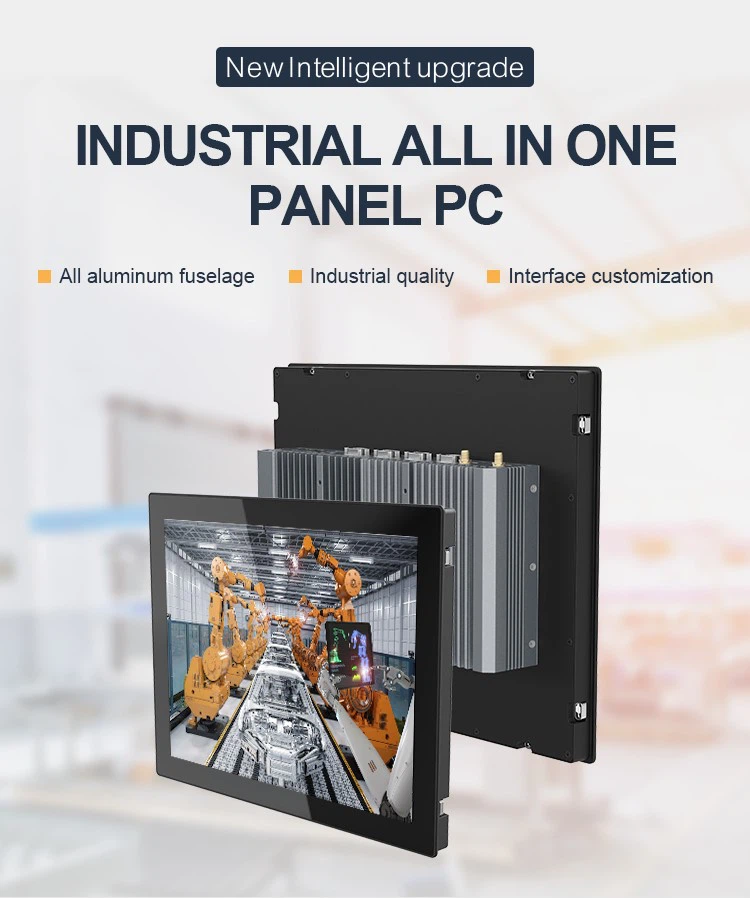

Fanless Embedded Panel Pc
-10.4" 12.1" 15" 17" 19"/10.1" 13.3" 15.6" 21.5"
-Intel® Core 7th/10th/J6412 Gen i3/i5/i
-10 points touch
-Fanless cooling
Send Inquiry
Product Details ofFanless Embedded Panel Pc
Product Specification

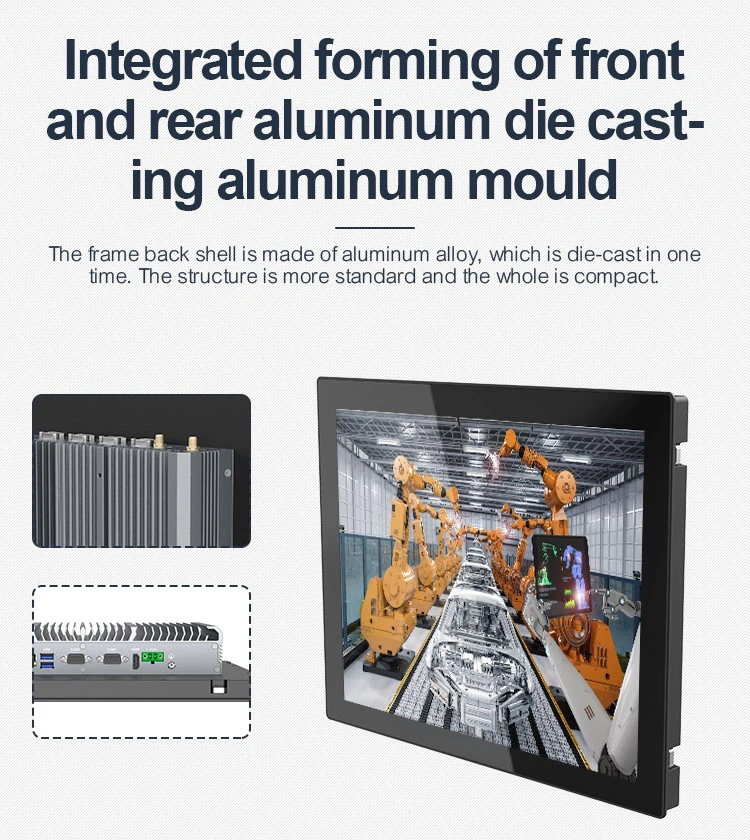

Our touch all-in-one machine is designed for industrial applications, capable of withstanding harsh environments and the harsh conditions of various industrial environments. It features an industrial-grade aluminum structure and a high-efficiency fin-type heat dissipation structure, capable of adapting to a variety of complex and harsh application scenarios, including high dust and stable operation in high and low temperature environments.
|
CPU |
Intel® Core 7th/10th/J6412 Gen i3/i5/i7 |
|
Memory |
2*SODIMM slots, supports DDR4 dual-channel, max 64GB |
|
Storage |
1*M.2 2280 Key-M (SATA SSD, customizable NVME SSD); 1*SATA (2.5" HDD) |
|
Network (LAN) |
2*RTL8111H Gigabit Ethernet, support Wake-on-LAN/PXE |
|
I/O Interface |
1*Power switch; 1*Power LED, 1*HDD LED; 1*HDMI; 4*USB3.0, 2*USB2.0; 2*LAN; 6*COM (COM1/COM2 optional RS232/RS485, COM3-COM6 |
|
Expansion |
1*M.2 2230 Key-E (WIFI/BT); 1*Mini-PCIE (WIFI/4G) |
|
Speaker |
2*8Ω 2W |
|
OS |
Microsoft® Windows10, Windows11, Linux |
|
Resolution |
1024*768 |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
|
Brightness |
450nits |
|
Operating Temp. |
-5℃～60℃ |
|
Storage Temp. |
-20℃～75℃ |
|
Relative Humidity |
5%-95% non-condensing |
Application:
This panel pc is a must-have tool for a wide range of industrial applications. These displays are designed to withstand harsh working environments and provide reliable performance for businesses and industries. This product is widely used in various factories, construction sites, and other work scenarios.
