Product Specification

Our touch all-in-one machine is designed for industrial applications, capable of withstanding harsh environments and the harsh conditions of various industrial environments. It features an industrial-grade aluminum structure and a high-efficiency fin-type heat dissipation structure, capable of adapting to a variety of complex and harsh application scenarios, including high dust and stable operation in high and low temperature environments.

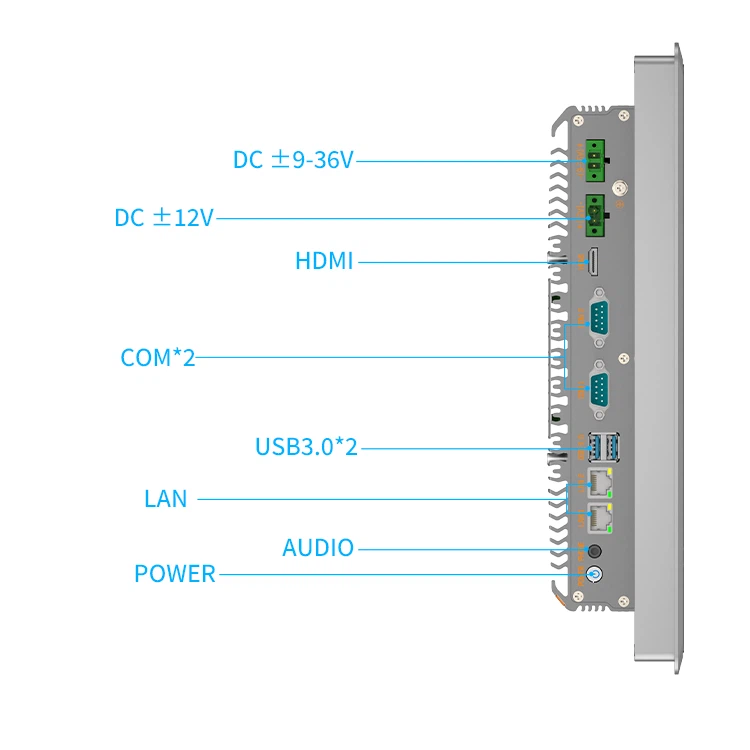

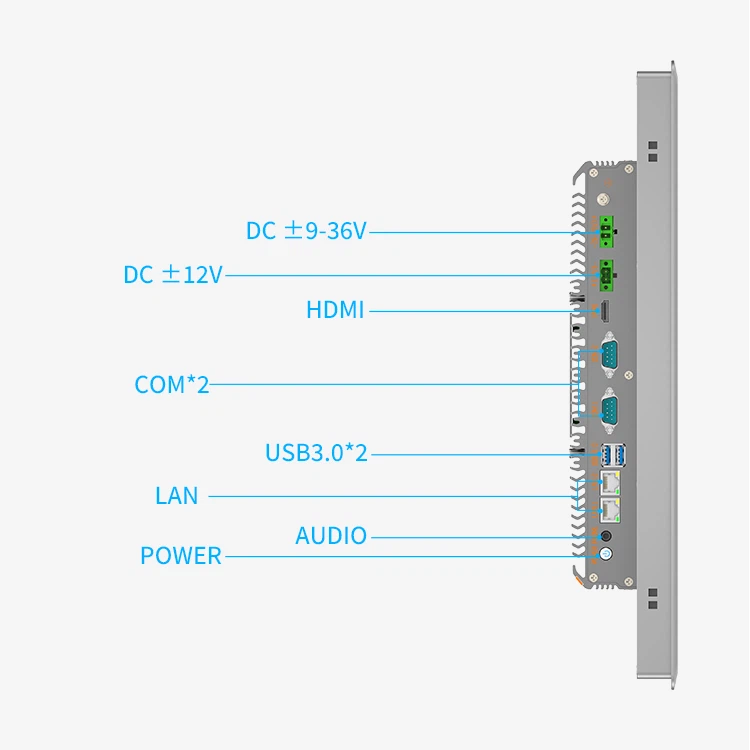

This machine has DC, COM, HDMI, USB 3.0, LAN, AUDIO and other interfaces, and the number of interfaces supports customization.

Adopting industrial-grade aluminum structure and high-efficiency fin-type heat dissipation structure, it can work stably in high and low temperature environments and can operate normally in an environment between minus 20 degrees Celsius and 55 degrees Celsius.

At the heart of this remarkable product is high-quality touchscreen technology with support for 10-touch, which promises to deliver unparalleled image clarity and a responsive user interface.

This tablet has passed IP65 certification, which can effectively prevent water from infiltrating in factories or special environments, ensuring the safe and smooth operation of the machine.

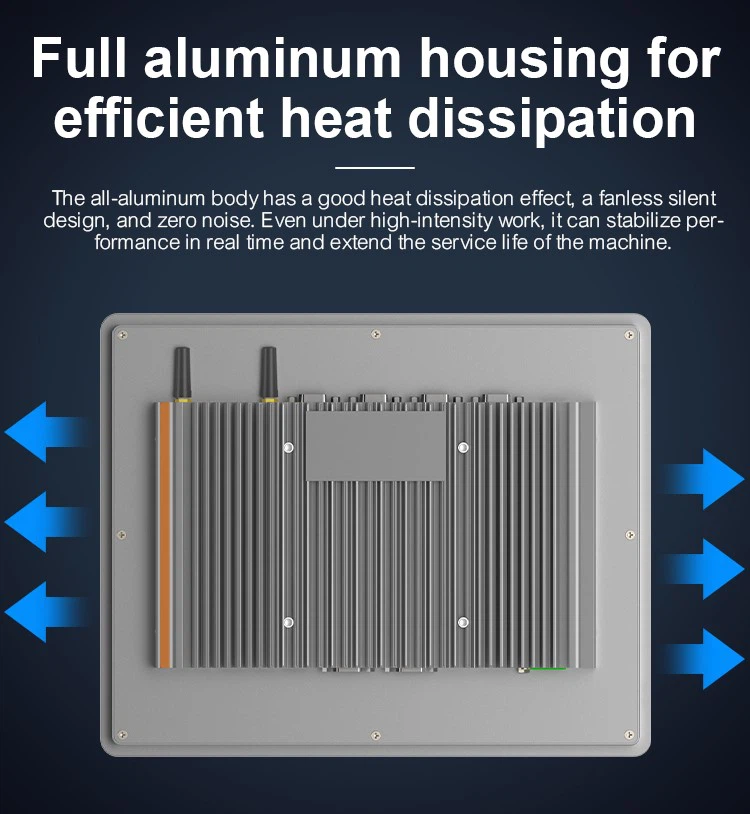

The all-aluminum body has a good hear dissipation effect, a fanless silent design, and zero noise. Even under high-intensity work, it can stabilize performance in real time and extend the service life of the machine.

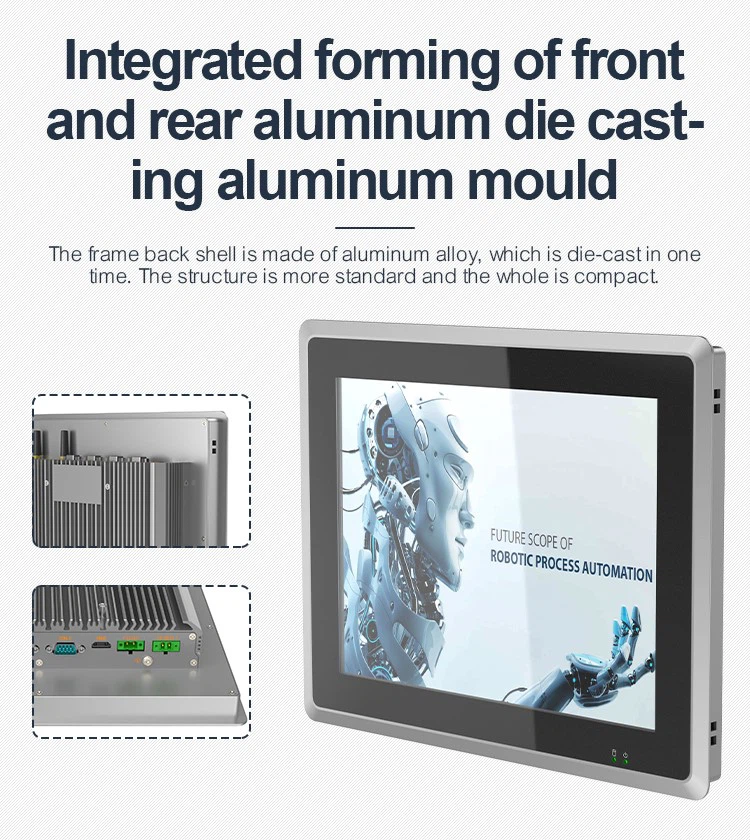

The frame back shell is made of aluminum alloy, which is die-cast in one time. The structure is more standard and the whole is compact.

This model has 10.4, 12.1,15, 17, 19 inch can be chosen, we also have other model that have smaller or bigger size.

Senke Industrial PC		SK-K10DR	SK-K12DR	SK-K15DR	SK-K17DR	SK-K19DR
Motherboard	Confirmuration	J6412,i3-7100U,i5-7200U,DDR4-4GB,SSD-128GB
Interface	WiFi,3/4G module	802.11b/g/n(optional), Support3g/4g(optional)
	HDMI	1*HDMI output
	USB	2USB3.0,2USB2.0
	Network	2*RJ45 with 1000 Base-T
	Com	com(RS485)*2
	Power supply	1*DC lock phoenix terminal, Support 9-36V
	Audio output	1*3.5mmaudio
	Other	8*GPIO(optional)
Display	Screen type	10.4 LCD	12.1 LCD	15 LCD	17 LCD	19 LCD
	Resolution	1024*768	1024*768	1024*768	1280*1024	1280*1024

	Contrast ratio	1000:1	800:1	1000:1	1000:1	1000:1
	Brightness	200cdm2	200cdm2	250cdm2	250cdm2	250cdm2
	Brightness Optional	1000cdm2	1000cdm2	1000cdm2	1000cdm2	1000cdm2
	Screen ratio	4:3	4:3	4:3	5:4	5:4
Structure	Front and back cover	Aluminum
	Craft	Glass frame paste, aluminum die casting
	Color	Black, grey
	Heat dissipasion	Fanless aluminum fin heat dissipation
	Panel indicator light	Power state, hard disk state

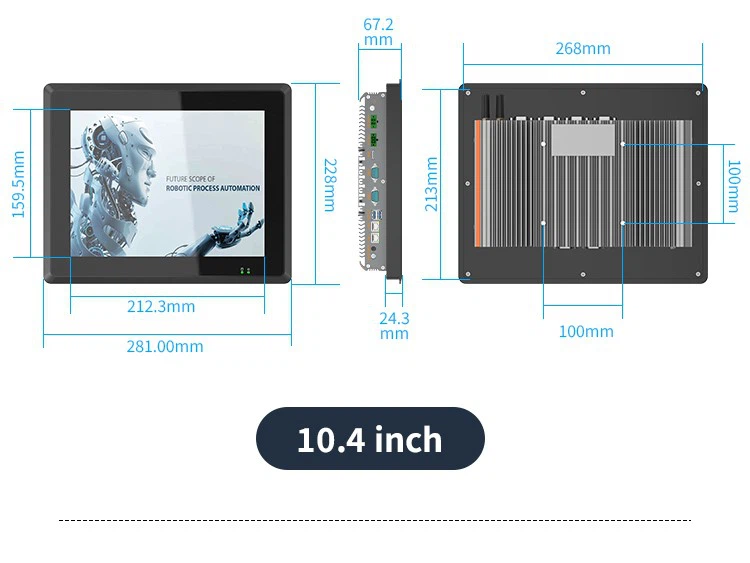

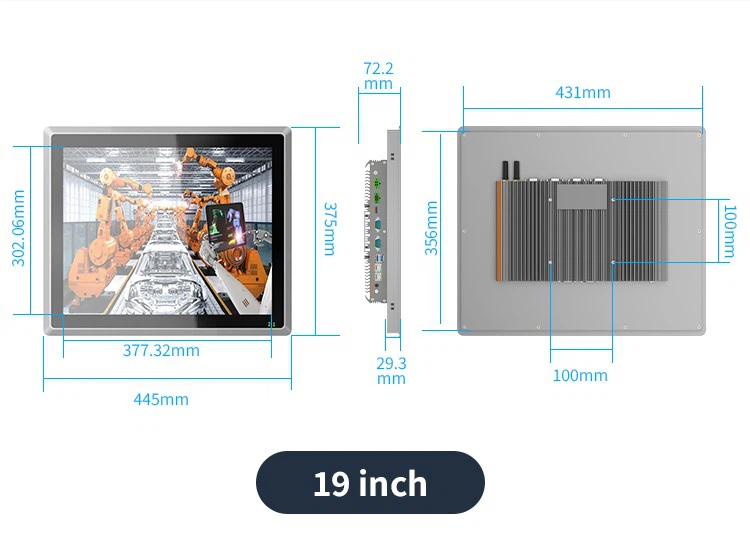

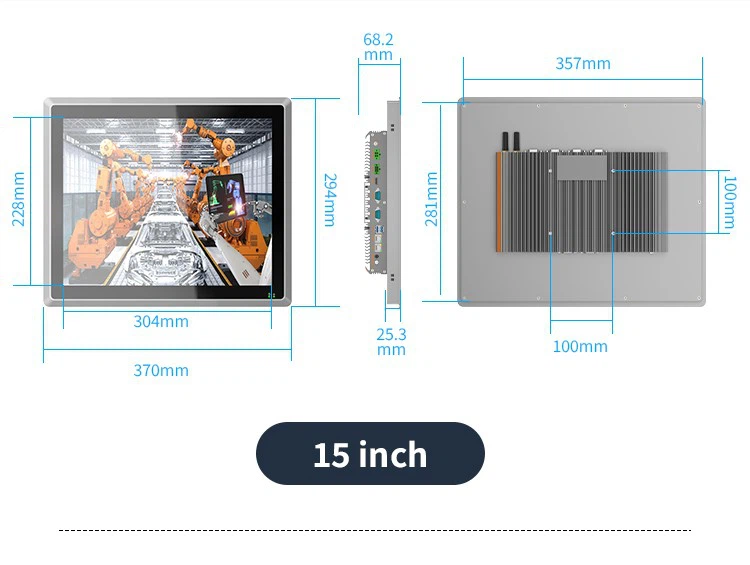

	Whole size	28122867.2mm	314.9253.767.2mm	37029468.2mm	40434169.2mm	44537572.2mm
Touch screen	Type	Projected capacitive touch screen
	Touch point	10 point touch
	Physical Resolution	4096x4096
	Response time	<5ms
	Accuracy	<2.5mm
	Transparency	≥90%
	Protection	The surface is coated with 1:1 PVC protective film
Others	Working environment	-20℃~70℃; Humidity: 10%~90%
	Storage environment	Temperature: -40℃~80℃; Humidity: 10%~90%
	Installation ways	Embedded,VESA100*100mm
	Power consumption	24W	25W	33W	34W	37W
Accessories	Manual	User Manual, certificate of qualification, warranty card
	Bracket	wall mounted bracket, embedded bracket, desktop bracket(optional)
	Adapter	Power adapter

Application:

101

This panel pc is a must-have tool for a wide range of industrial applications. These displays are designed to withstand harsh working environments and provide reliable performance for businesses and industries. This product is widely used in various factories, construction sites, and other work scenarios.
