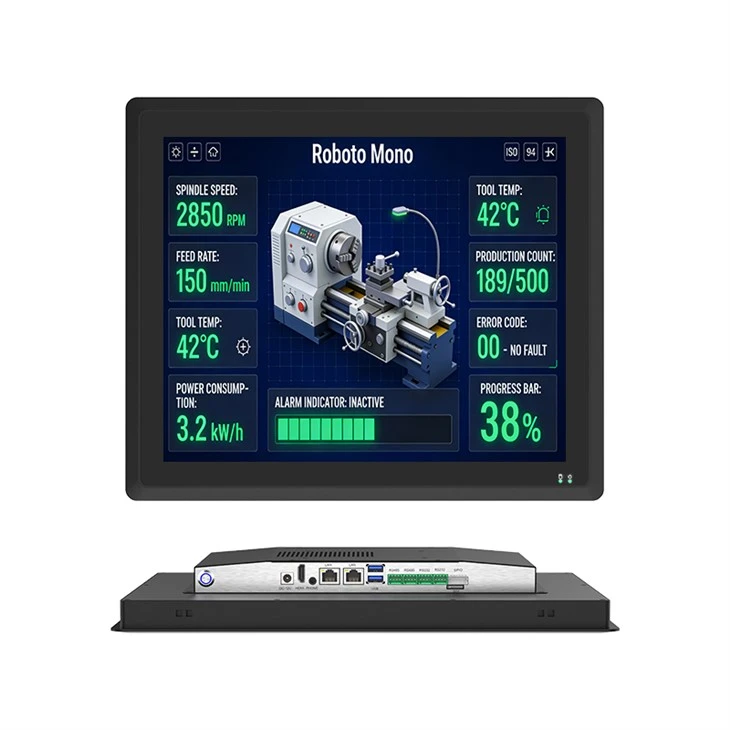

Industrial Panel Pc Android

Industrial Panel Pc Android

Rugged & Durable Industrial Design
High-Definition & Responsive Touch Experience
Extreme Temperature & 24/7 Reliability
Superior Anti-Interference & Stability
Versatile Connectivity & Dual OS Support
Send Inquiry
Product Details ofIndustrial Panel Pc Android

Specification

Category

Specifications

Details

System Configuration

Processor (CPU)

Rockchip RK3562, Quad-core Cortex-A53, Up to 2.0GHz



Memory (RAM)

2GB LPDDR4 (4GB / 8GB Optional)



Storage (eMMC)

16GB (32GB/64GB/128GB/256GB/512GB Optional)



Operating System

Android 13 (Default) / Linux (Ubuntu/Debian)



NPU

1T OPS NPU

Display & Touch Screen

Screen Size

10.4 / 12.1 / 15 / 17 / 19 Inch



Resolution

1024*768 (Standard) / 1920*1080 (HD Models)



Brightness

450 nits (High brightness optional)



Contrast Ratio

1000:1



View Angle

89/89/89/89 (Typ.)(CR≥10)



Touch Type

10-Point Projective Capacitive Touch (PCAP)

I/O Interfaces

USB Ports

2 x USB 3.0 (1*Host, 1*OTG), 2 x USB 2.0



Serial Ports

4 x COM (2*RS232, 2*RS232/RS485 Optional)



Network

1 x 100Mbps RJ45 LAN, WiFi, Bluetooth 4.1



Audio

1 x Audio 2-in-1 (Mic-in/Line-out), 2 x 2W Speakers



Expansion

4 x GPIO, 1 x SIM Slot, 1 x Mini-PCIE (4G/5G Optional)

Protection & Mechanical

Protection Grade

IP65 Waterproof Front Panel



Cooling & Shell

Fanless Design, Rugged Aluminum Alloy Enclosure



Power Input

DC 12V (Optional DC 9V-36V Wide Voltage)



Installation

Embedded Panel Mount / VESA Mount (75/100mm)



Operating Temp

-5℃ to 60℃




Products Description




product-750-898



 Experience the ultimate ultra-thin industrial touch screen monitor, now with an intelligent upgrade. Featuring a robust, all-aluminum fuselage for industrial quality, it offers flexible interface customization for seamless integration into smart factory applications.



product-750-499

Industrial application: ultra-thin, powerful control. A durable cast aluminum fuselage holds a vivid 1920x1080 HD screen. With responsive 10-point capacitive touch, it functions reliably from -20°C to 60°C and supports 24-hour uninterrupted work. Customized service available to tailor for your needs.

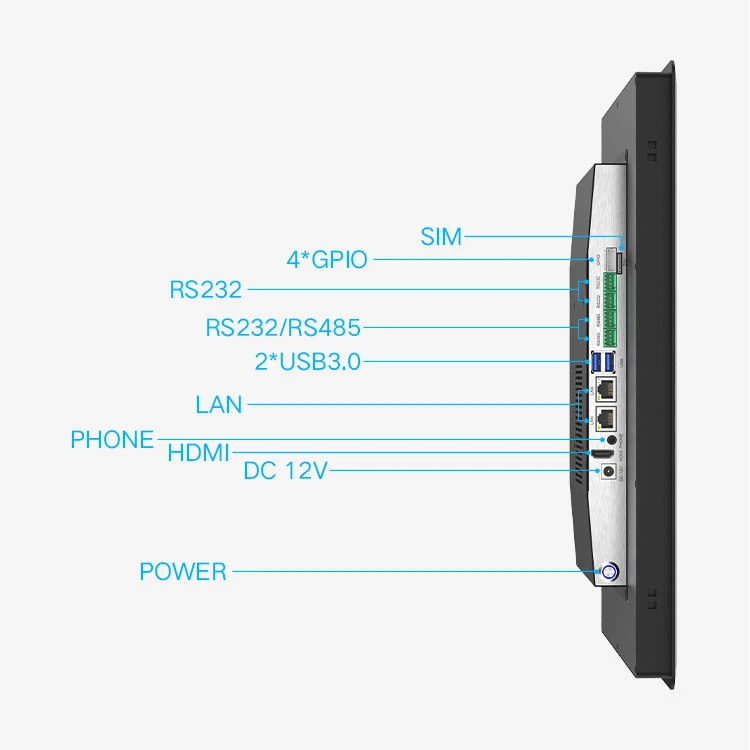

product-750-750

Experience superior connectivity and control with this ultra-thin panel PC. It features multiple I/O including dual LAN, USB 3.0, a SIM slot, RS232, RS485, and 4*GPIO. This makes it perfect for complex industrial automation and data acquisition projects.

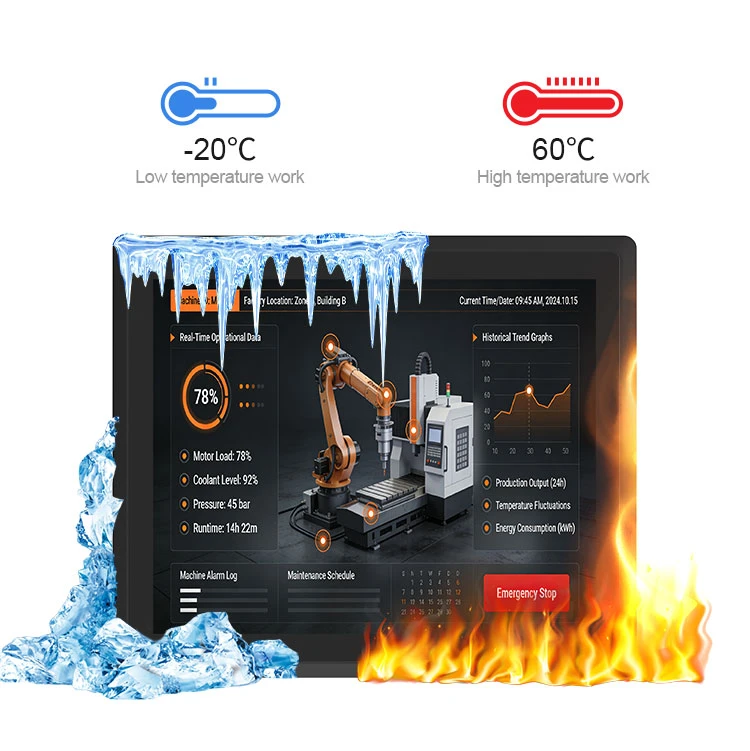

product-750-751

Engineered for unwavering reliability in harsh industrial environments, this ultra-rugged touchscreen operates flawlessly from an extreme cold of -20°C to an intense heat of +60°C. It ensures continuous, real-time control and data monitoring for your critical automation systems, providing maximum uptime regardless of the temperature.

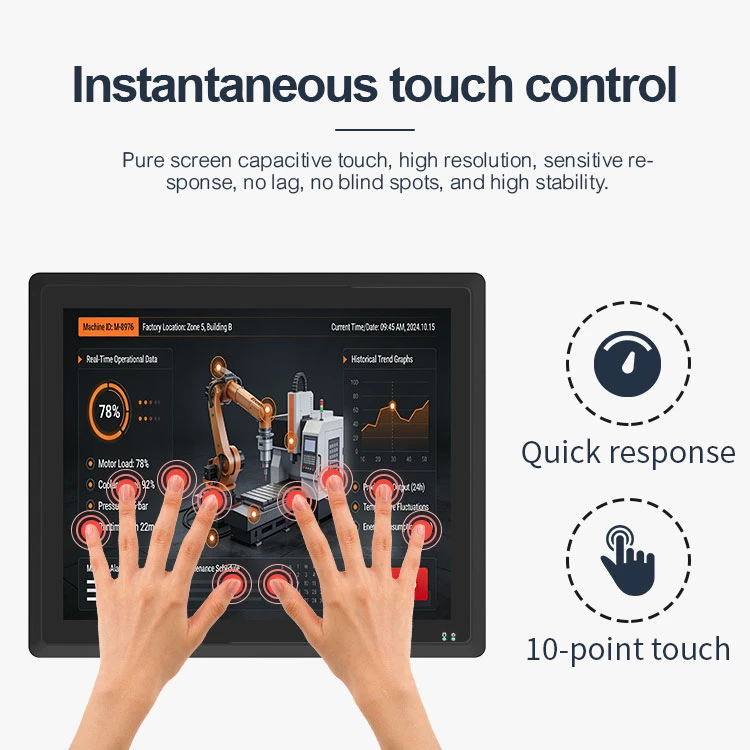

product-750-750

Unlock peak factory efficiency with our ultra-precise, instantaneous touch screen. This pure capacitive, 10-point multi-touch display provides a high-resolution, high-stability interface. With quick response and absolutely zero lag, it allows for seamless, multi-user, and complex control actions, ensuring accurate input for advanced industrial applications. Experience productivity at a touch.

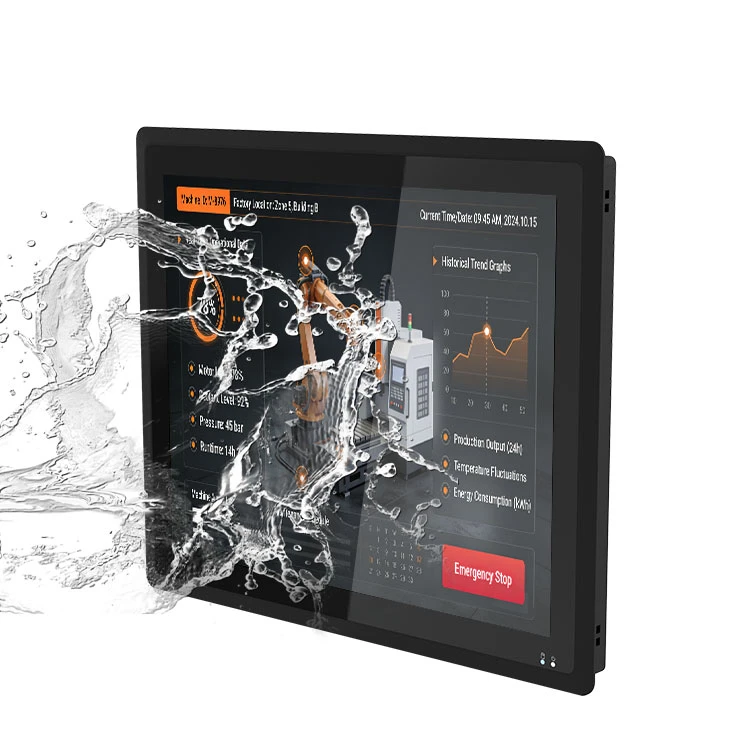

product-750-745

Built for the toughest environments, this rugged Industrial HMI Panel PC offers full IP-rated waterproofing and durability. Its high-visibility screen provides an intuitive real-time monitoring dashboard, featuring detailed historical trend graphs, production metrics, and a 3D robotic arm view for precise factory control. Reliability you can trust.

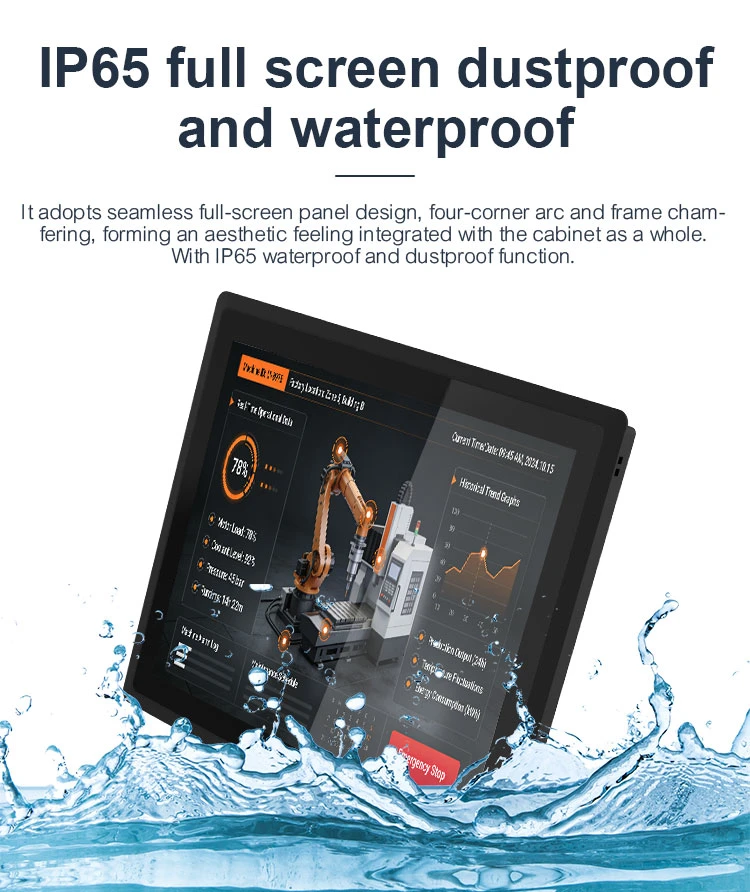

product-750-892

Designed for durability and aesthetics, this industrial monitor features an IP65 full-screen dustproof and waterproof build. Its seamless panel, rounded corners, and chamfered frame deliver a sleek look that flawlessly integrates with your equipment cabinet, ensuring reliable protection in harsh environments.

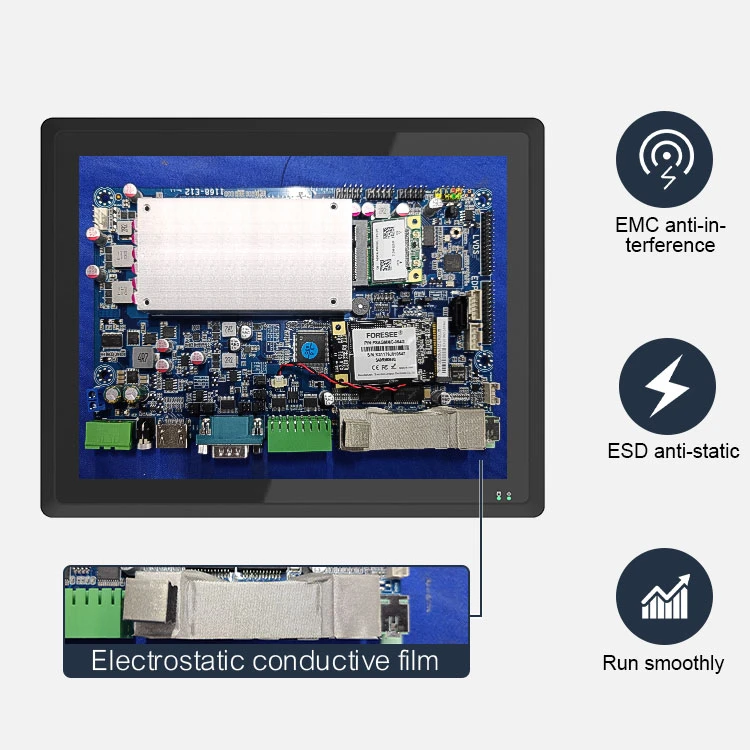

product-750-750

Ensure continuous, stable operation with this advanced industrial motherboard. Featuring a specialized electrostatic conductive film, it provides robust ESD anti-static protection and excellent EMC anti-interference capabilities. Built to run smoothly in complex electrical environments, this design guarantees reliable, uninterrupted performance for your critical applications.

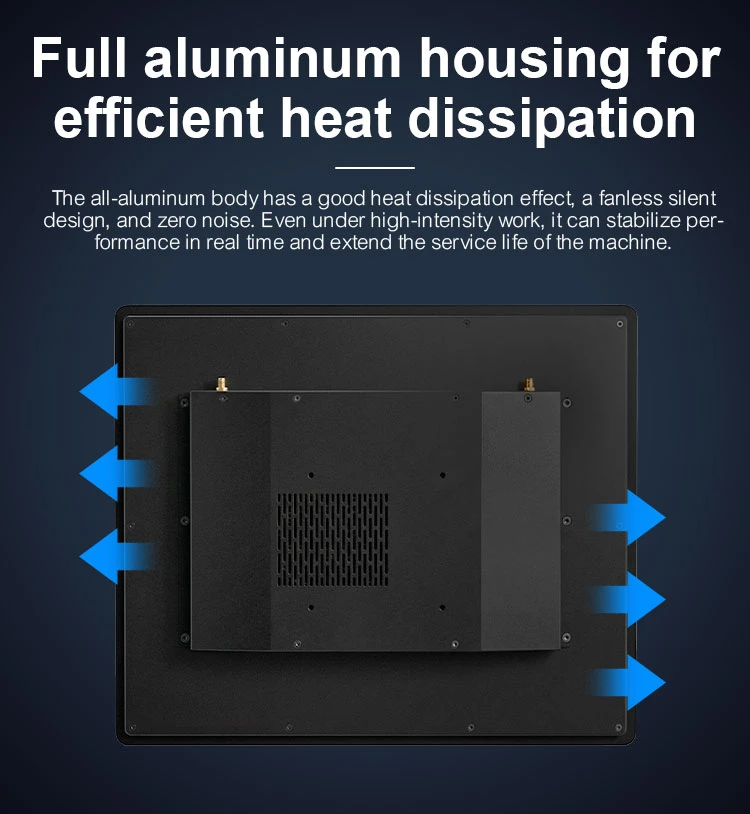

product-750-814

Experience zero noise and ultimate reliability with our fanless industrial monitor. The full aluminum housing ensures highly efficient heat dissipation. Even during continuous, high-intensity operations, this rugged design guarantees stable real-time performance while significantly extending the machine's service life. Perfect for demanding environments requiring silent power.

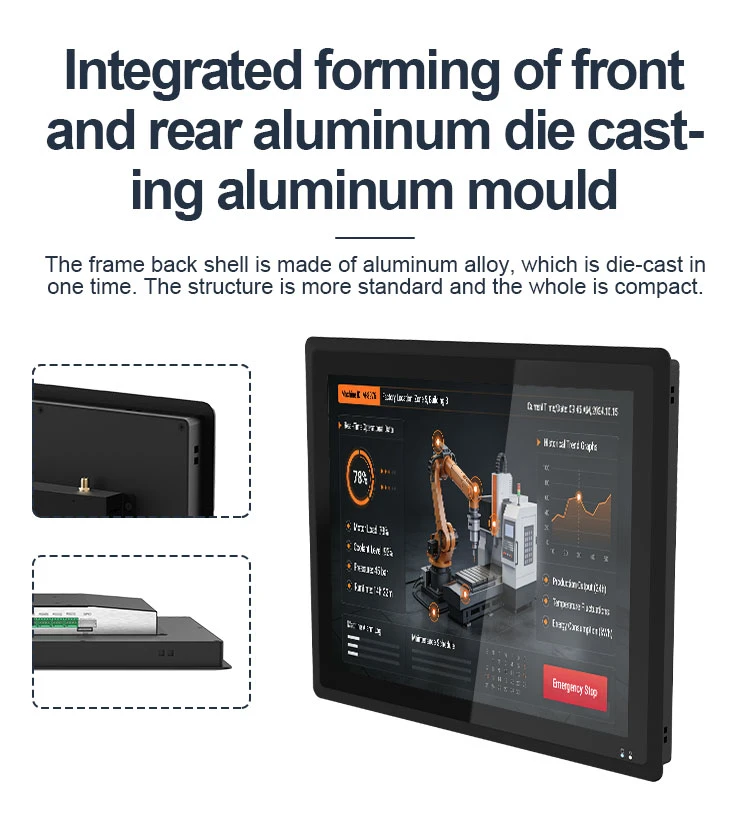

product-750-823

Built for superior structural integrity, this industrial monitor features an integrated front and rear aluminum die-cast design. The one-time die-cast aluminum alloy frame and back shell create a highly standardized, compact, and robust body, ensuring long-lasting durability for demanding applications.

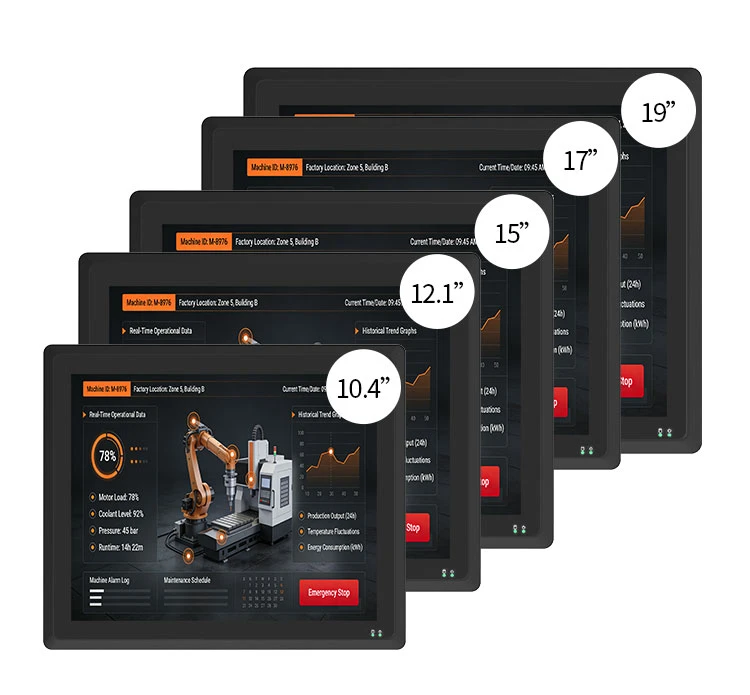

product-750-695

Available in multiple sizes including 10.4", 12.1", 15", 17", and 19", our industrial touch screen monitors offer versatile solutions for any factory setup. Choose the perfect display dimension to optimize your human-machine interface, ensuring seamless integration and clear data visualization for all your automation needs.



product-750-509

Maximize your deployment flexibility with our versatile industrial tablet, offering seamless compatibility with both Android and Linux operating systems. Choose the OS that best fits your software ecosystem and industrial automation requirements without changing your hardware. One tablet, two powerful options.
