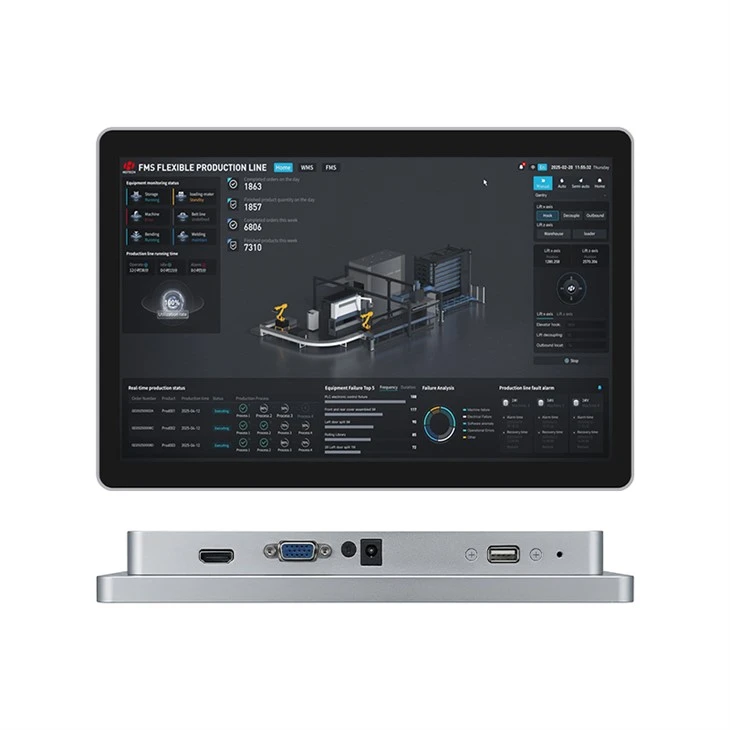

Industrial Monitor
-12.1 inch 15 inch 17 inch 19 inch
-Rugged All-Aluminum Housing
-10-Point Responsive Capacitive Touch
-Versatile Connectivity & Upgradeable
Send Inquiry
Product Details ofIndustrial Monitor
Product Specification
This panel pc is a must-have tool for a wide range of industrial applications. These displays are designed to withstand harsh working environments and provide reliable performance for businesses and industries. This product is widely used in various factories, construction sites, and other work scenarios.
|
**Display Specifications** |
|
|
Screen Size |
12.1 inch/15 inch/17 inch/19 inch |
|
Screen Type |
LCD with LED Backlight |
|
Resolution / Interface / Voltage |
1280*800 / LVDS / 3.3V |
|
Contrast Ratio |
1300:1 (TYP) |
|
Brightness |
400-500cd/m² |
|
**System & Interfaces** |
|
|
Motherboard Configuration |
Industrial Display Board |
|
Interfaces |
DC / HDMI / VGA |
|
Wi-Fi |
802.11b/g/n (Supports 2.4G; 3G/4G/5G Optional) |
|
Ethernet |
10/100Mbps Adaptive Ethernet |
|
Bluetooth |
Supports BT V4.0 |
|
Power Supply |
12V/5A |
|
**Touch Panel** |
|
|
Touch Type |
Capacitive Touch |
|
Touch Points |
10-Point Capacitive Touch |
|
Response Time |
<5ms |
|
Accuracy |
<2.5mm |
|
Transparency |
≥90% |
|
Protection |
Covered with 1:1 Special PVC Protective Film |
|
Accuracy Tolerance |
Target point tolerance: ±2.5mm; Dynamic jitter limit: 10% |
|
**Structure & Physical Dimensions** |
|
|
Housing Material |
Full Aluminum Alloy |
|
Color |
Industrial Gray/customized |
|
**Environmental & Installation** |
|
|
Operating Environment |
Temperature: -20°C to 60°C; Humidity: 10% to 90% |
|
Storage Environment |
Temperature: -30°C to 70°C; Humidity: 10% to 90% |
|
Mounting Options |
Wall Mount / Desktop Stand |
|
Included Accessories |
Power Adapter |
