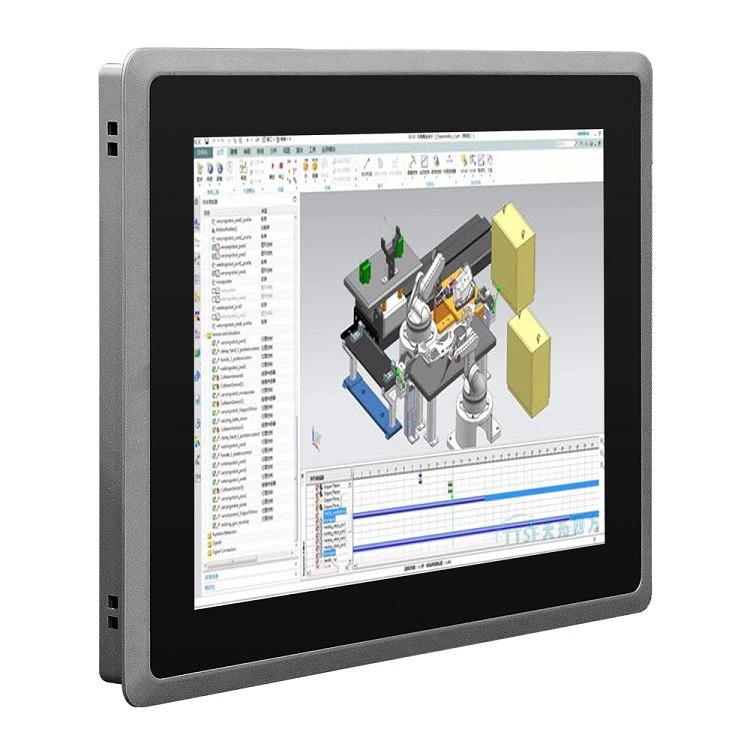

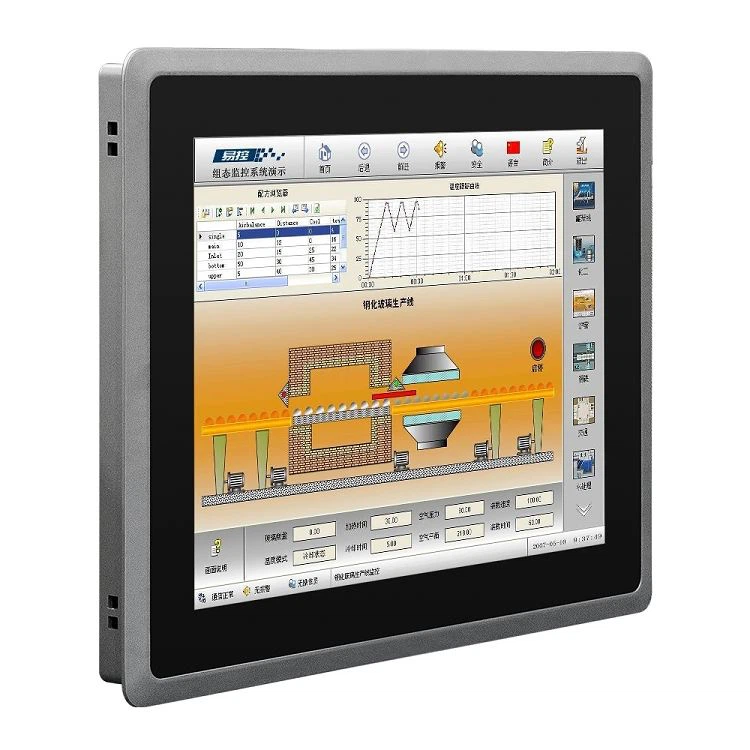

Industrial Grade Pc

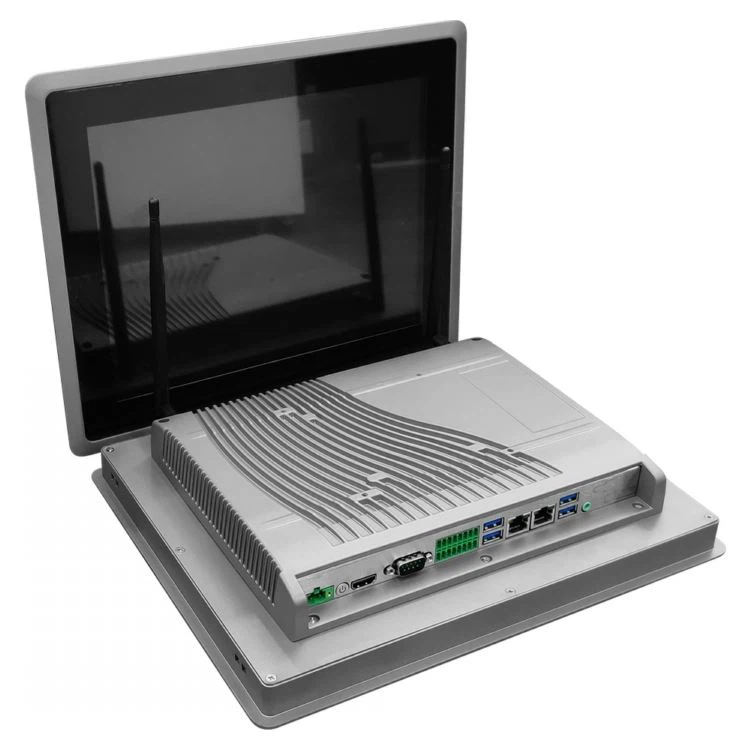

Our Industrial Grade PCs combine advanced computing power with a range of hardened displays to provide a modular solution that enables easy customization and simplified upgrading while reducing maintenance costs. IP65 grade panels with Rugged plug and play attachable PCs make for an extremely economical solution. They allow you to choose the screen size and type for your needs. The selection of Senke Industrial Panel PCs are available in various screen sizes and have a compact, fully integrated enclosure. Industrial touchscreen displays provide a rugged all-in-one solution for human/machine interface (HMI), inventory management, point of use, kiosk or industrial control applications.
Product specification
Items | SK-10GB | SK-12GB | SK-15GB | SK-17GB | SK-19GB | |
Motherboard | Configuration | Intel®4th generation Pentium 3558U/ DDR3-4G/SSD-32/64/128/256/500G | ||||
Upgrade 1 | Intel@4th Core i3-4005U, DDR3-4G, SSD-64G/128G | |||||
Upgrade 2 | Intel@4th Core i5-4200U, DDR3-4G, SSD-64G/128G | |||||
Upgrade 3 | Intel@4th Core i7-4500U, DDR3-4G, SSD-64G/128G | |||||
Interface | WiFi, 3/4G module | 802.11b/g/n (optional), Support 3g/4g (optional) | ||||
HDMI | 1*HDMI output | |||||
USB | 4*USB 3.0 | |||||
Network | 2*RJ45 with 1000 Base-T | |||||
Com | 2* COM(RS232), can changed to RS485 or add more 2 to 4 RS232 | |||||
Power supply | 1*DC lock phoenix terminal，Support 9-36V | |||||
Audio output | 1*3.5mm audio | |||||
Other | 8*GPIO (optional) | |||||
Display | Size(inch) | 10.4inch | 12.1inch | 15inch | 17inch | 19inch |
Screen type | LCD screen with LED backlight | |||||
Resolution | 1024*768 | 1024*768 | 1024*768 | 1280*1024 | 1280*1024 | |
Size(mm)(W)*(H): | 210.4×157.8 | 245.7×184.3 | 304.1×228.1 | 376.3×301.1 | 376.3×301.1 | |
Contrast ratio | 500:1 | 500:1 | 700:1 | 900:1 | 900:1 | |
Brightness | 200cd/㎡ | 200cd/㎡ | 250cd/㎡ | 250cd/㎡ | 250cd/㎡ | |
Screen ratio | 4:3 | 4:3 | 4:3 | 5:4 | 5:4 | |
Structure | Front and back cover | Aluminum | ||||
Craft | Glass frame paste, aluminum die casting | |||||
Color | Black, grey | |||||
Heat dissipasion | Fanless, aluminum fin heat dissipation | |||||
Panel indicator light | Power state, hard disk state | |||||
Whole size(mm) | 281*228*56.8 | 315*254*56.8 | 304*2941*55.3 | 404*341*56.3 | 445*3756*59.3 | |
Touch screen | Type | Projected capacitive touch screen | ||||
Touch point | 10 point capacitive touch | |||||
Physical Resolution | 4096x4096 | |||||
Response time | ＜5ms | |||||
Accuracy | ＜2.5mm | |||||
Transparency | ≥90% | |||||
Protection | The surface is coated with 1:1 PVC protective film | |||||

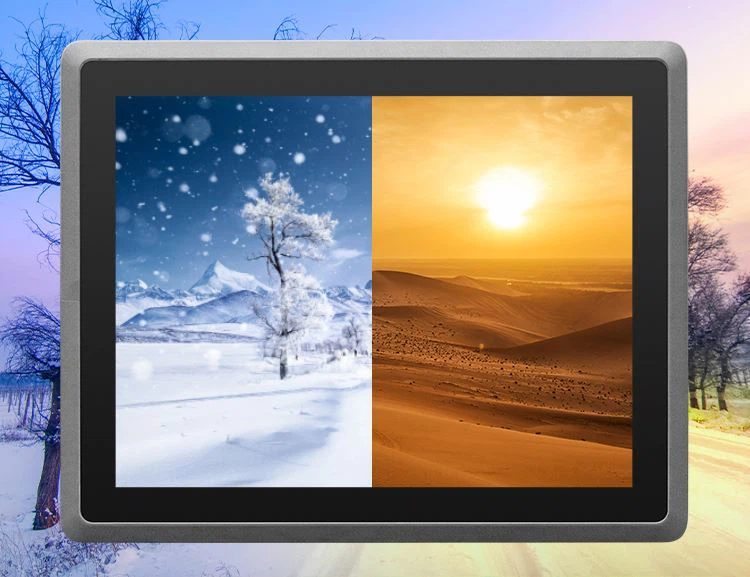

Others | Working environment | -20℃～ 70℃; Humidity: 10%～ 90% | ||||
Storage environment | Temperature: -40℃～80℃; Humidity: 10%～90% | |||||
Installation ways | Embedded, VESA100*100mm | |||||
Power consumption | 24W | 25W | 33W | 34W | 37W | |
Packing size | ||||||
Accessories | Manual | User Manual, certificate of qualification, warranty card | ||||
Bracket | wall mounted bracket, embedded bracket, desktop bracket(optional) | |||||
Adapter | Power adapter | |||||
Product features:
1. IP65 grade panel
2. Fanless cooling
3. Aluminum full-enclosed enclosure
4. Pentium3558U/i3/i5/i7CPU

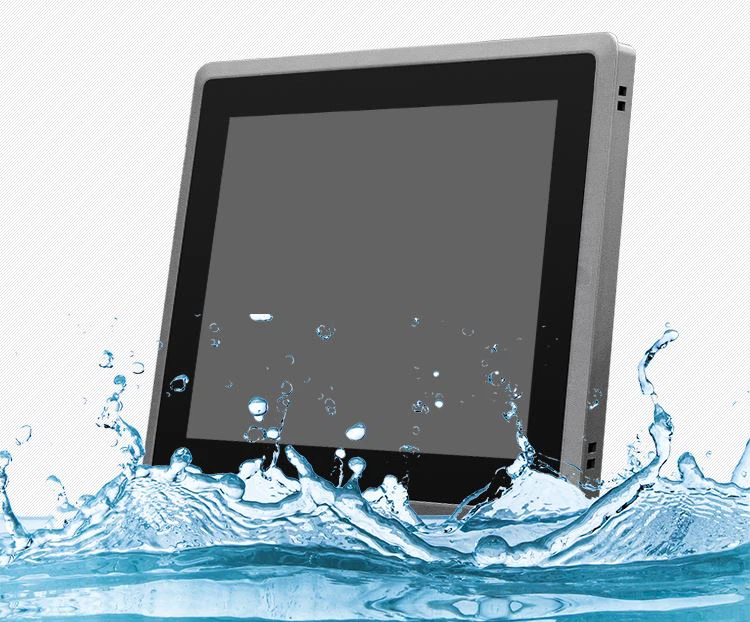

5. Waterproof and dust proof
6. ESD anti-static
7. EMC anti-interference
Application

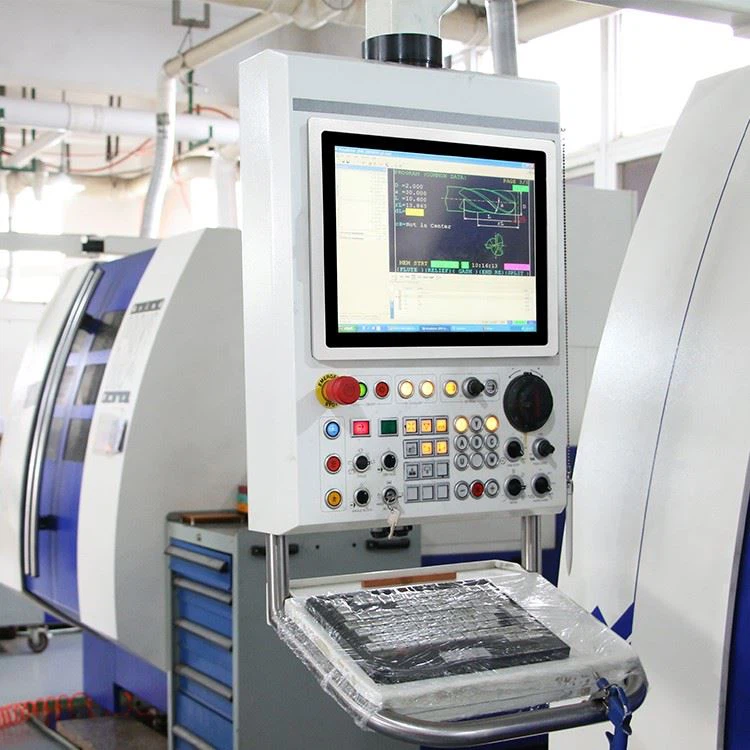

With die-casting aluminum fully enclosure, the industrial grade PCs can be suitable for different using places, even it has a terrible environment. Like the factory production line for controlling machine, the medical machine, vending machine etc.
QA&QC
We have full certificates for all our items, with a strict QC team.

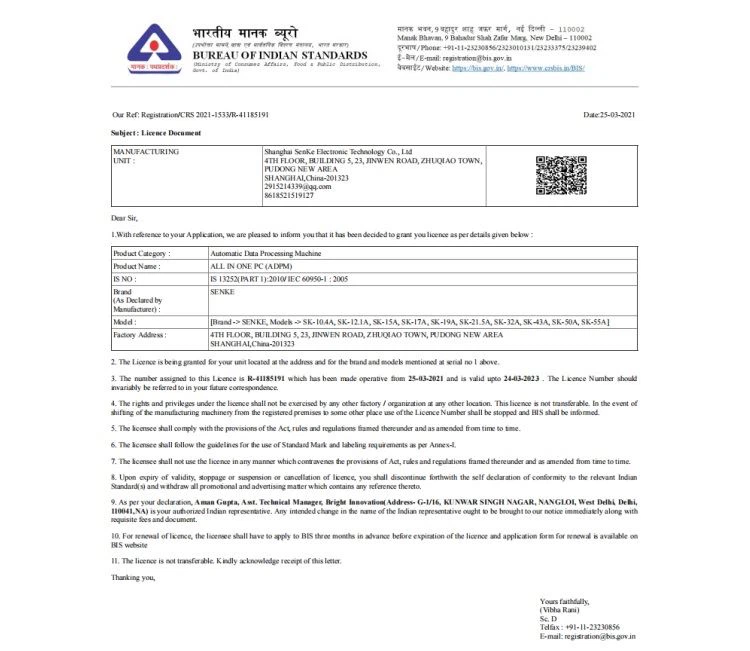

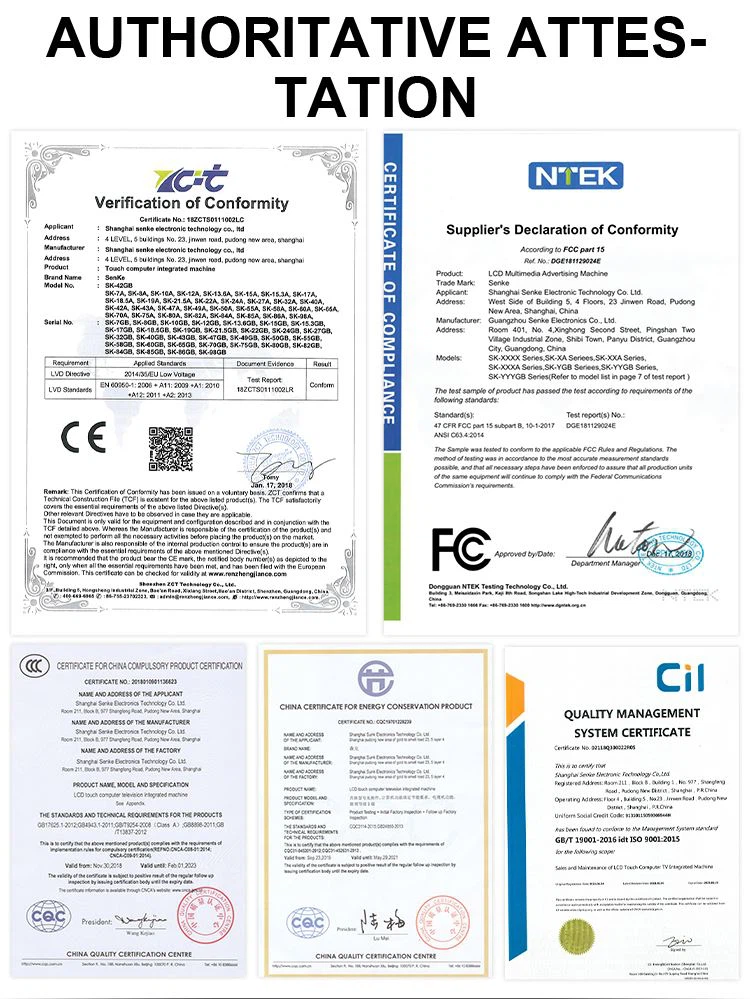

BIS, CE, FCC, UL, ISO9001, CCC certificates are available.
Packing and transportation
The product need to pack with foam to protect the panel, each items will be packed with paper carton individually.
