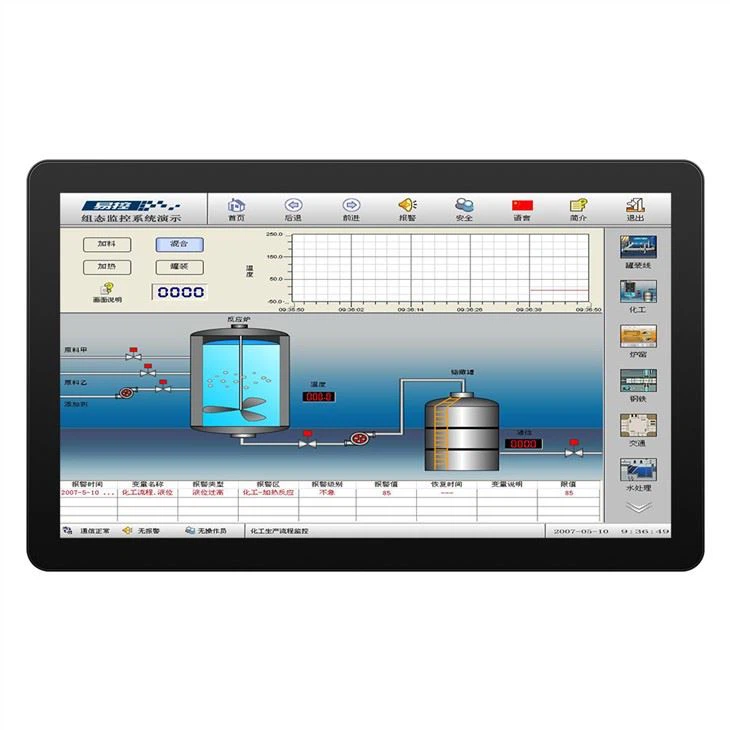

10.1 Inch Wide Screen Industrial Panel PCs

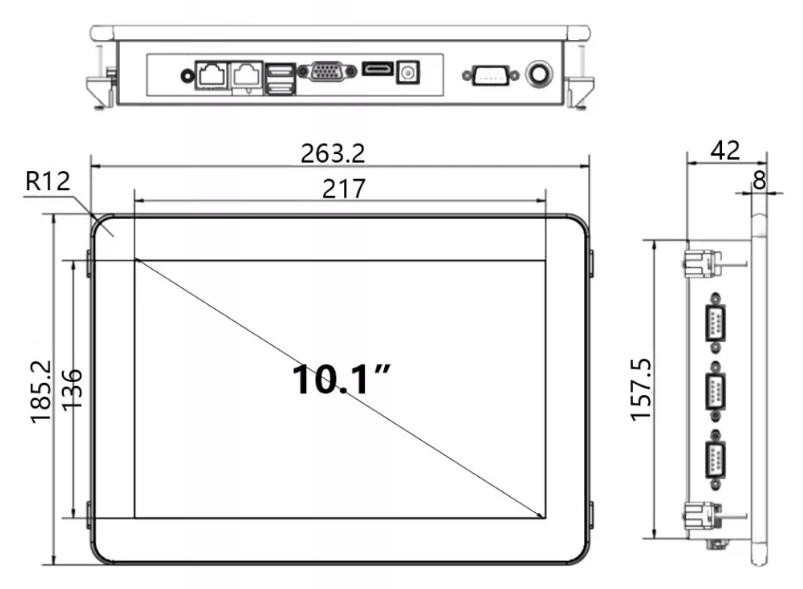

10.1" Product Specification (1280*800 resolution,16:10)
Configuration | N2840,Windows 10 operation systerm,4GB DDR3,32GB SSD |
USB | USB 3.0 x4 |
Network | 2*LAN,WIFI(3G/4G optional) |
Com | RS232/RS485 |
Power supply | 12V, 5A |
Bracket | Default embedded or wall mounted |
Brightness | 250nits |
| Widescreen sizes | 7,10.1,13.3,15.6,18.5,21.5,23.6,27 inch |
Feature
High Resolution LCD Display with LED backlight
Flat panel with capacitive touch screen
Front panel compliant with IP65
Anti-scratch surface with pvc protective
Slim and Compact Design
Customized Mini PCIe,NFC,RFID,etc
Low power consumption
DC-12V Power Input

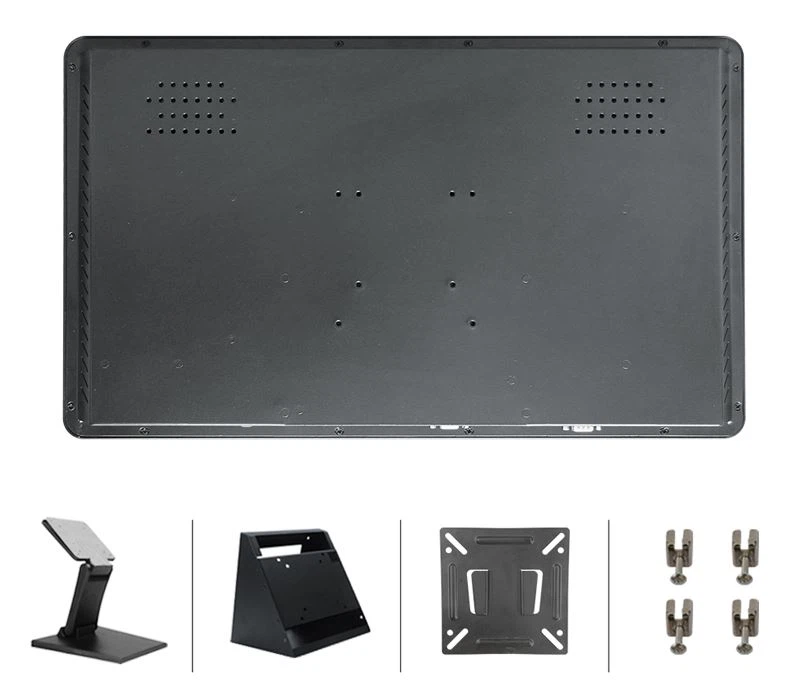

There are four installation ways, desktop type, wall mount type, embedded type and vesa mount.
Industrial pc use VGA or HDMI to esaily expand to realize multi-screen simultaneous display,but it need to prepare split screen module independently.

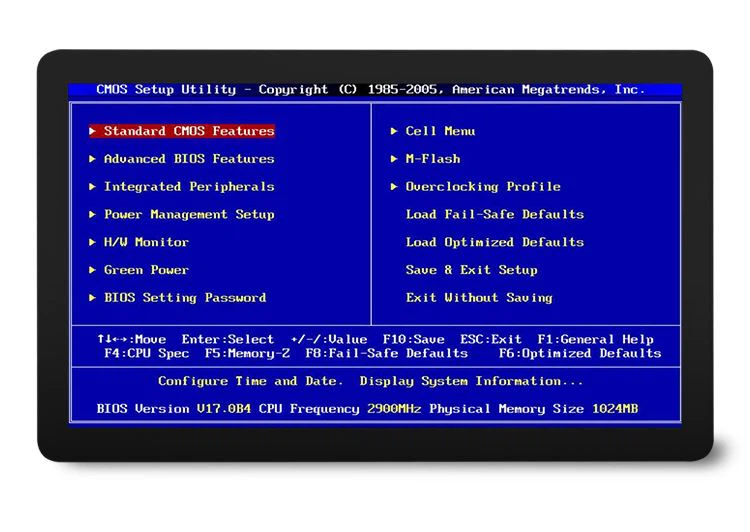

10.1 inch wide screen industrial panel PCs built with automatic power switch function and can be set by BIOS,which is more suitable for unstable but continuous operating working environment.
10.1 inch wide screen industrial panel PCs offers ultra-reliable performance, integrated connectivity, rugged internal components to ensure the units have stable operation in all-weather and electromagnetic interference environment .
