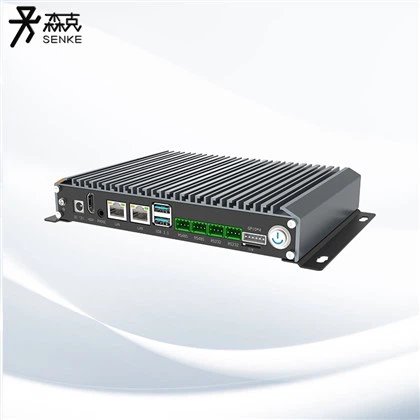

Fanless Industrial Mini Pc
-COM ports customized
-4 * USB 3.0, 4 * USB 2.0
-4 * LAN
-DC 12V, 9-36V Optional
Product Specification
These compact and durable pcs are designed to withstand harsh working conditions, high temperatures and vibrations, making them ideal for use in factories, warehouses and other industrial environments.They are very energy efficient, helping to reduce operating costs and increase the overall efficiency of a production line or manufacturing process.


Rich and customizable interfaces are suitable for all your work scenarios, and various mechanical interfaces can be customized to ensure the smooth progress of your production.

8 GPIO interface, which can be flexibly expanded to control more external device or circuit, making the application scenarios more extensive.

With 2 HDMI and VGA output, the industrial box pc can connext monitors independently, and supports dual screen output, synchronous display.

| Processor | Support Core (I3/I5/I7) 7th/10th generation U series high-performance processors |
| BIOS | AMI UEFI BIOS |
| Memory | 2 * laptop memory card slot |
| The 7th generation series supports up to 32G, and the 10th generation series supports up to 64G. | |
| Display | 2 * HDMI,1*VGA |
| Hard disk | 1 * M.2 2280 SSD card slot |
| 1 * 2.5 inch, hard disk position (optional) | |
| Wireless network | 1 * M.2 seat (supports WiFi) |
| 1 * MINI-PCIE seat (supports 4G module) | |
| Front panel IO | DC 12V 2PIN input |
| 2 * HDMI | |
| 4 * USB 3.0,4 * USB 2.0 | |
| 4 * LAN (Intel network interface card chip) | |
| 1*TYPE-C | |
| 8 GPIO | |
| 2 * Optional DC9-36V wide voltage input bit (optional) | |
| Rear panel IO | 1 * Start switch + indicator light |
| 1 * Audio 2-in-1 (audio output + microphone voice input) | |
| 1 * SIM card slot | |
| 1*VGA | |
| 2 * Reserve WIFI antenna hole | |
| 6*COM (COM1-COM2RS232/RS485,COM3-COM6RS232) | |
| 2 * Reserve 4G module antenna hole | |
| Operating System | Windows/Linux |
| Working temperature/humidity requirements | -5℃~60℃,10%~90% non-condensing |
| Non-working temperature/humidity requirements | -20℃~75℃,5%~95% non-condensing |
| Optional configuration | I3/I5/I7 7th generation CPU |
| I3/I5/I7 10th generation CPU |
Application:
One advantage of industrial mini pc is their small size. They can be installed in tight spaces or where desktop computers and other large systems are not suitable. This makes them ideal for use in space-constrained environments, such as factory floors, production lines, or assembly lines.
