Fanless Industrial Mini Pc with Serial Port
● Integrated Intel®Skylake-U I5 6360U dual-core four-thread processor
● 2*DDR4 SODIMM memory slot, support 2133MHz memory, maximum support 32GB
● Support independent three display, 2*HDMI and 1*VGA display output
● Support 2* WGI211AT gigabit network card, support LAN wake-up, PXE function
Send Inquiry
Product Details ofFanless Industrial Mini Pc with Serial Port
Product Dimension(SK-78H2R4)
Motherboard | CPU | Integrated Intel®Skylake-U I5 6360U/2.0GHz dual-core four-thread processor TDP 15W |
System chip | Based on Intel®Skylake-U SOC platform | |
Display | Integrated Intel® Iris™ Graphics 540 supports DirectX 12 OpenGL 4.5 | |
RAM | 2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum support 32GB | |

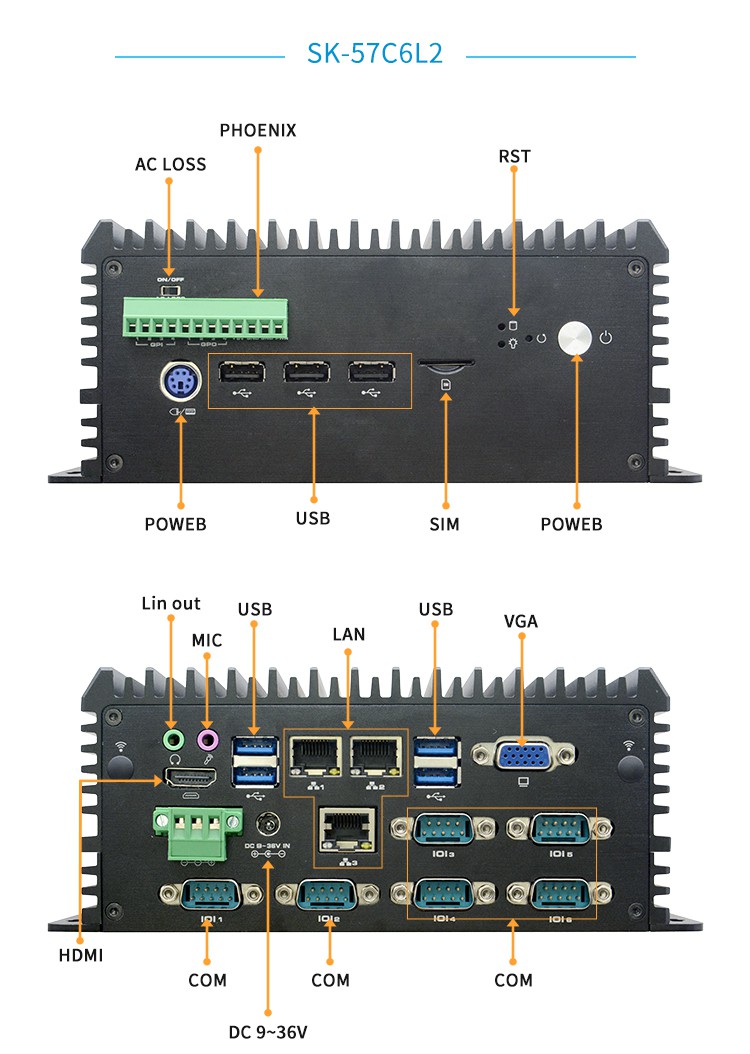

Front panel interface | POWER | 1*power switch, 1*reset switch |
AC LOSS | 1*AC LOSS (Toggle switch when power on) | |
USB | 3* USB2.0 interface, 1* built-in USB dongle | |
SIM | 1* SIM card slot, 3G/4G module application | |
Rear panel interface | Display interface | 1*VGA interface, 2*HDMI1.4 interface |
LAN | 2*Intel® WGI211AT gigabit network card, support Wake on LAN, PXE function | |
USB | 4* USB3.0 interface | |
COM | 6* RS232 (2*DB9 interface supports RS232; the other supports 4*RS232/485 phoenix terminals, and optical isolation) | |
Phoenix terminal | 2*10pin, support 4 RS232/485 serial ports with isolation, four-in and four-out GPIO with isolation, switch, 5V | |
PS2 | 1*PS2 interface | |
Audio | 1* Line out interface, 1* MIC interface | |
power supply | 1* DC power adapter interface, 1* 3pin power interface, support 9~36V power input | |
Storage | SATA | 1*2.5 inch hard drive expansion |
Solid state drive | 1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps | |
Expand | Mini PCIE | 1* Mini PCIE slot, support WIFI/4G module |
M.2 | 1* M.2 slot, support M.2 2260/2280 NVME PCIE standard SSD | |
Software support | Microsoft Windows | Windows 10, 64bit (without key) |
Linux | Ubuntu | |
Watch Dog | Support hardware reset function (256 levels, 0~255 seconds) |
Fanless industrial mini pc adopts all aluminum alloy material, fully closed fanless design, dustproof, low noise and good heat dissipation, to make sure the industrial mini pc has good performance in harsh environments. Fanless passive cooling design, lower noise, super energy saving and lower power consumption. The operating temperature is from -10℃ to 60℃.
Fanless industrial mini pc with serial port, such as HDMI, VGA, LAN, COM, USB,etc. And mass storage to make sure the mini pc has stable running.
RAM-- 2*DDR4 SODIMM memory slot, support dual-channel 2133MHz memory, maximum
SATA-- 1*2.5 inch hard drive expansion
Solid state drive-- 1* MSATA SSD solid state drive expansion, transmission speed up to 6Gbps
Fanless industrial mini pc integrates superior processor performance, wireless capability and rich expandable I/O in a compact design, ideal for a wide range of applications supporting intelligent transportation, in-vehicle multimedia, surveillance and industrial automation application.
With HDMI and VGA output, the industrial mini pc can connect monitors independently, and supports multi screen output , synchronous / asynchronous display.
